Humminbird Fish Finder Piranha-Max 165 408620-1
Humminbird

Humminbird Fish Finder Piranha-Max 165 408620-1

Item #11055227 MPN 408620-1 UPC 082324036651

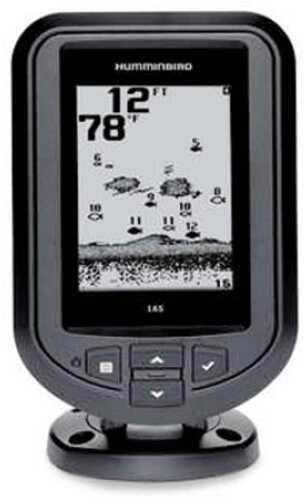

Humminbird Fish Finder Piranha-Max 165

The PiranhaMAX 165 features a 8 level grayscale 240V X 160H, 4" display with 800 watts PTP power output with Single Beam sonar. The design also allows drop-in replacement for competitive in-dash models.



Specifications:

Display Size - Diagonal:4"

Display Pixel Matrix:240V x 160H

Display Type:FSTN LCD

Display Colors Grayscale:8 Level Grayscale

Sonar Standard:Single Beam

Standard Sonar Coverage:28° @ -10db

Standard Sonar Frequency:200 kHz

Target Separation:2 1/2"

Power Output RMS:100 Watts

Power Output Peak to Peak:800 Watts

Depth Capability:600 ft

Temperature:Included

Backlight:Yes

Mount A Unit Size:3 7/8"W x 6 1/2"H x 3 1/2"D

Mount B Unit Size:3 7/8"W x 5 5/8" H x 1 3/8"D

Unit Mount Type:Tilt/Optional In-Dash Mounting Kit

Transducer Standard:XNT-9-28-T

Transducer Mounting:Transom

Power Input:10-20 VDC

Power Draw:100 mA

Manufacturer: Minn Kota / Humminbird

Model: 408620-1

Humminbird Fish Finder Piranha-Max 165 408620-1
Out of stock
$0.00
