Humminbird Fish Finder Piranha-Max 175 408640-1
Humminbird

Humminbird Fish Finder Piranha-Max 175 408640-1

Item #11055234 MPN 408640-1 UPC 082324036743

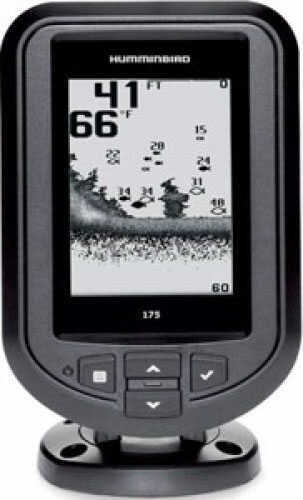

Humminbird Fish Finder Piranha-Max 175

The PiranhaMAX 175 features a 16 level grayscale 240V X 160H, 4" display with 1600 watts PTP power output with Dual Frequency sonar. The design also allows drop-in replacement for competitive in-dash models.

Specifications:

Display Size - Diagonal:4"

Display Pixel Matrix:240V x 160H

Display Type:FSNT LCD

Display Colors Grayscale:16 Level Grayscale

Sonar Standard:DualBeam

Standard Sonar Coverage:28° & 16° @ -10db

Standard Sonar Frequency:200/455 kHz

Target Separation:2 1/2"

Power Output RMS:200 Watts

Power Output Peak to Peak:1600 Watts

Depth Capability:600 ft

Temperature:Included

Backlight:Yes

Mount A Unit Size:3 7/8"W x 6 1/2"H x 3 1/2"D

Mount B Unit Size:3 7/8" W x 5 5/8"H x 1 3/8"D

Unit Mount Type:Tilt/Optional In-Dash Mounting Kit

Transducer Standard:XNT-9-28-T

Transducer Mounting:Transom

Power Input:10-20 VDC

Power Draw:100 mA



Manufacturer: Minn Kota / Humminbird

Model: 408640-1

Humminbird Fish Finder Piranha-Max 175 408640-1
