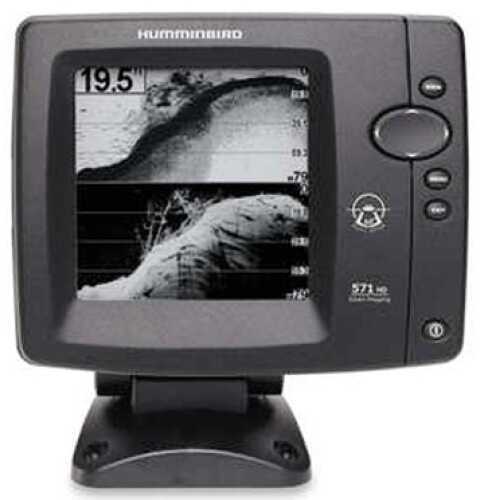

Humminbird Fish Finder 500 Series 571 Hd Di 408960-1

Humminbird Fish Finder 500 Series 571 Hd Di

The 571 HD DI features a high resolution 16 Level Grayscale 320H x 640V 5" display with Down Imaging® sonar with 4000 watts PTP power output.

Specifications:

Display Size - Diagonal:5"

Display Pixel Matrix:320H x 640V

Display Type:FSTN LCD

Display Colors Grayscale:16 Level Grayscale

Sonar Standard:Down Imaging/DualBeam PLUS

Standard Sonar Coverage:75°, 45°, 28° & 16° @ -10db

Standard Sonar Frequency:455/800/200/455 kHz

Target Separation:2 1/2"

Power Output RMS:500 Watts

Power Output Peak to Peak:4000 Watts

Depth Capability:350 ft (DI) & 600 ft

Temperature:Included

Speed:Capable

Backlight:Yes (IPX7 Class)

Mount A Unit Size:6.75"W x 7"H x 4"D

Mount B Unit Size:6.75"W x 5.4"H x 1.25"D

Transducer Standard:XNT-9-DI-T

Transducer Mounting:Transom

Power Input:10-20 VDC

Power Draw:200 mA



Manufacturer: Minn Kota / Humminbird

Model: 408960-1
