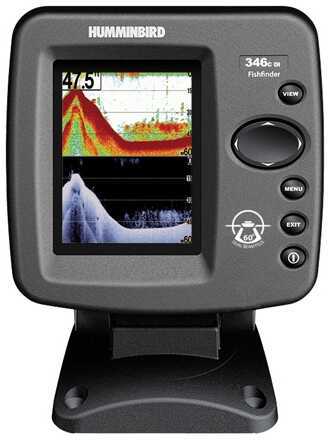

Humminbird 346c DI Down Imaging Sonar Md: 409020-1

Humminbird 346c DI Down Imaging Sonar

Fish like a pro with the 346c DI. The high-resolution 4" 256 color display has an LED backlight and 320 x 240 pixels. The device features Down Imaging(R) with DualBeam and sonar as well as Down Imaging(R): 455kHz/75deg @ -10db; 800kHz/45deg @ -10db. The sunlight viewable device has DualBeam PLUS(TM) with SwitchFire(TM): 200kHz/29deg @ -10db; 455kHz/16deg @ -10db. The DualBeam PLUS(TM) sonar delivers wide coverage and better bottom definition, and the device has reliable performance from shallow to deep water. The device displays water temperature and has selectable 20deg or 60deg sonar beams, or simultaneous operation in addition to 4000W peak-to-peak output. With tilt and swivel disconnect or optional in-dash mount, the device has a 1-year warranty.

Specifications:

- Display Size - Diagonal:3.5"
- Display Pixel Matrix:240H x 320V
- Display Type:Color TFT
- Display Colors Grayscale:256 Colors
- Sonar Standard:Down Imaging/DualBeam PLUS
- Standard Sonar Coverage:16°, 28°, 45° & 75° @ -10db
- Standard Sonar Frequency:455/800/200/455 kHz
- Target Separation:2.5"
- Power Output RMS:500 Watts
- Power Output Peak to Peak:4000 Watts
- Depth Capability:350 ft (DI) & 600 ft (2D)
- Temperature:Built In Transducer
- Speed:Optional
- Backlight:Yes
- Unit Size - Gimbal Mount:5.25"W x 7.4"H x 4"D
- Mount A Type:Quick Disconnect
- Unit Size - Indash Mount:5.25"W x 5.12"H x 1.12"D
- Mounting Options:Quick Disconnect (Optional In-Dash Mounting Kit)
- Transducer Standard:XNT 9 DI T
- Transducer Mounting:Transom
- Power Input:10-20 VDC
- Power Draw:425 mA

Manufacturer: Humminbird
Model: 409020-1
