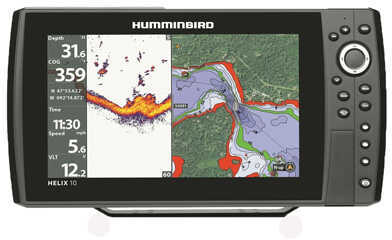

The HELIX 10 Sonar GPS features a super bright LED backlit 10.1" display. This wide screen 1024H x 600V color display provides bright, crystal-clear images for easy viewing in harsh sunlight. The DualBeam PLUS sonar with SwitchFire has 4000 watts PTP power output, GPS Chartplotting with built-in Humminbird ContourXD map and Ethernet networking capabilities. Includes a unit cover, dual card reader and Instant Access Preset buttons.
*Optional 50 kHz transducers are available for extreme deepwater use
- 360 Imaging: We have you surrounded. 360 Imaging allows you to isolate your sweep, see 5 preset views or see all around you
- SwitchFire Sonar: Take command of how your sonar returns appear with Clear and Max Modes
- Dualbeam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area
- Internal GPS: GPS antenna built into the head unit
- Up-gradable Software: Access software updates to enhance the performance of your Humminbird unit through the My Humminbird section of the site
- Dual SD Card Slots: Use one slot for advanced cartography and the other to save screenshots, sonar recordings and waypoints
- High Definition Display: Provides bright, crystal-clear images for easy viewing in harsh sunlight
- Contour XD: Built-in base map cartography that covers 3,000 US lakes with depth contours and many other locations without contours
- Ethernet: Rig up the ultimate fishing system. Use the 5-Port Ethernet switch to link together multiple Humminbird head units or share transducers
- HD Radar: In darkness and fog, busy channels and treacherous weather, situational awareness is the name of the game
- AIS: Battle fish - not other boats. Humminbird's state of the art AIS technology takes the risk and guesswork out of navigating high-traffic channels or low-visibility seas
- Autopilot: Never deviate from your route with the precise control and proven performance of your Humminbird Autopilot System
- i-Pilot Link: An integrated GPS Trolling System available on select Minn Kota Terrova and PowerDrive V2 motors which enable your motor and Humminbird to communicate
- NMEA 2000: Get an at-a-glance view of fuel consumption, engine performance and other vessel data
- Wireless: Take wireless control of your Humminbird with the new Bluetooth Remote and Dongle
Specifications :
- Display Size - Diagonal: 10.1"
- Display Pixel Matrix: 600V x 1024H
- Display Type: Color TFT
- Display Colors Grayscale: 65,000 Colors
- Sonar Standard: DualBeam PLUS
- Standard Sonar Coverage: 20° & 60° @ -10db
- Standard Sonar Frequency: 200/83/50* kHz
- Target Separation: 2.5"
- Power Output RMS: 1000 Watts*
- Power Output Peak to Peak: 8000 Watts*
- Depth Capability: 1500 ft & 3000 ft*
- Temperat
