Humminbird Helix 9 SI GPS KVD Md: 409950-1KVD
Humminbird

Humminbird Helix 9 SI GPS KVD Md: 409950-1KVD

Item #11114960 MPN 409950-1KVD UPC 082324047374
Humminbird Helix 9 SI GPS KVD Md: 409950-1KVD

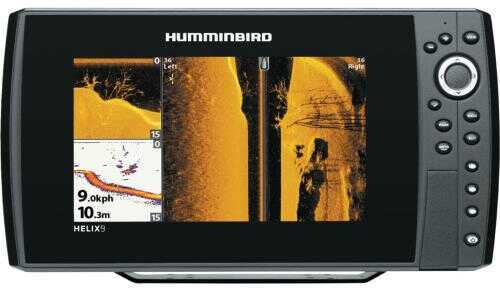

The HELIX 9 SI GPS features a super bright LED backlit 9 display. This wide screen 800H x 480V color display provides bright, crystal-clear images for easy viewing in harsh sunlight. The Side Imaging/Down Imaging sonar with DualBeam PLUS and SwitchFire has up to 8000 watts PTP power output, GPS Chartplotting with built-in ContourXD map and Ethernet Networking capabilities. includes a unit cover, dual card reader and Instant Access Preset buttons.



Specifications:

- Display Size - Diagonal: 9

- Display Pixel Matrix: 480V x 800H

- Display Type: Color TFT

- Display Colors Grayscale: 65.000 Colors

- Sonar Standard: Side Imaging/Down Imaging/DualBeam PLUS

- Standard Sonar Coverage: 20°, 60° & (2) 85° @ -10db (Total of 180°)

- Standard Sonar Frequency:50*/83/200/455 kHz

- Target Separation: 2.5



- Power Output RMS: 1000 Watts

- Power Output Peak to Peak: 8000 Watts

- Depth Capability: 150 ft (SI/DI), 1500 ft & 3000 ft

- Temperature: Built-In Transducer

- Speed: GPS Speed Included

- Backlight: LED

- Unit Size - Gimbal Mount: 13.44W x 7.12H x 4.20D

- Mount A Type: Gimbal

- Unit Size - Indash Mount: 13.44W x 7.12H x 3.99D

- Mounting Options: Optional In-Dash Mounting Kit

- Transducer Standard: XHS 9 HDSI 180 T

- Transducer Mounting: Transom

- Power Input: 10-20 VDC



- GPS Receiver: Included

- GPS Tracking: Included

- GPS Chartplotting: Included

- Waypoints, Routes, Tracks/Points: 2.750, 45, 50/20.000

- Humminbird Mapping: Optional

- Navionics Gold/HotMaps: Optional

- Navionics Platinum+: Optional

- Platinum Capable: Optional

- C-Map 4D: Not Supported

- 360 Imaging: Optional

- i-Pilot Link: Optional

- HD Radar: Optional

- NMEA 2000: Optional

- 5 Port Expansion Module: Optional

- WeatherSense: Not Supported

- Precision GPS: Included



- Heading Sensor GPS: Optional

- PC Connect: Optional

- External GPS Receiver: Optional

- AS Interlink: Not Supported

- AIS Compatability: Optional

- SwitchFire Sonar: Included

- Screen Snap Shot: Included

- Sonar Recording: Included

- Humminbird PC: Included

- Upgradable Internal Software: Included

- Split Screen Zoom: Included

- Split Screen Bottom Lock: Included

- 3D Chart View: Included



- Large Digits View: Included

- Wide/Narrow Cone Split Screen: Included

- Custom View Selections: Included

- Custom Digital Readout: Included

- View Preset Keys: Included

- Temperature Graph: Included

- Temperature Alarm: Included

- Freeze Frame: Included

- Instant Image Update: Included

- Mark Structure on Sonar: Included

- Selective Fish ID+: Included

- Real Time Sonar: Included

- Triplog: Included

- X-Press Menu System: Included

- Card Reader Available: Yes

- # Card Slots: 2



Manufacturer: Humminbird

Manufacturer Number: 409950-1Kvd

268641

Upc: 082324047374
