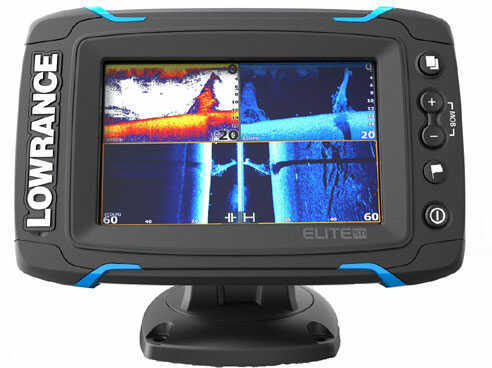

Lowrance Elite-5 Touch 83/200 455/800 HDI XDCR Fishfinder
High-resolution touch display - LED-backlit color display with touchscreen interface provides fast, fingertip access to all Elite-Ti features
CHIRP Sonar, StructureScan HD and DownScan Imaging - CHIRP Sonar offers improved fish-target separation and screen clarity, while the StructureScan HD sonar imaging system with exclusive Lowrance DownScan Imaging delivers photo-like images of fish-holding structure on both sides and directly beneath your boat. StructureScan HD requires optional TotalScan transducer.
TrackBack - Rewind your CHIRP sonar, SideScan or DownScan Imaging history to review structure or fish targets and mark the location with a waypoint
Internal GPS antenna - Highly accurate, built-in GPS antenna plus a detailed U.S. map
Optional chart upgrades - Optional Americas chart upgrades include Lake Insight and Nautic Insight PRO and HD, Navionics HotMaps Premium and Fishing Hotspots PRO. Global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N and MAX-N+.
Built-in wireless connectivity - Provides access to the GoFree Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partners
Xi5 Trolling Motor control via Lowrance SmartSteer
StructureMap included with built-in StructureScan (requires optional TotalScan transducer)
Fully customizable split-screen options
Specifications
General
Display size 5in Diag
Display Type WVGA color TFT LCD
Resolution 800H x 480W
Backlight PureWhite LED
Display brightness 1200 Nits
Enviromental
Operating temperature 5°F to 131°F (-15°C to 55°C )
Waterproof IPX7 with card door closed
Electrical
Current draw 0.9A @ 13VDC with backlight on full
Operating voltage 12vDC
Supply voltage 10.8-17vDC
Under Interface
Interface Single-touch touchscreen
Chartplotter
Display modes North up, Course up (COG), Heading up (heading with external heading sensor or COG)
Optional Cartography Navico Insight HD, Navionics Platinum+/Platinum/Gold, Fishing HotSpots
Alarms No GPS fix, Anchor, Low boat speed, XTE, Waypoint radius, Arrival
Sonar
Built-In CHIRP Yes
Built-In Broadband Yes
Built-In StructureScan Yes
Sonar Frequency Mid/High CHIRP (83/200kHz) 455/800 kHz DownScan, Low/High CHIRP (50/200kHz)
(*Available frequencies determined by connected transducer)
Broadband power 500w RMS
Sonar DownScan Max Depth 455/800 kHz 300ft
Sonar Broadband Max Depth Low/High (50/200 kHz) transducer 3000ft
Sonar Broadband Max Depth Mid/High (83/200 kHz) transducer 1000ft
Sonar alarms Fish, Shallow
TrackBack Yes
Comms/Interface
NMEA0183 1x RS422 port
Supported baud rates 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200
NMEA 2000 No
Cata card slot 1 micro SD card up to 32GB
GPS Navigation
GPS type Internal high-sensitivity WAAS + EGNOS + MSAS
Waypoints 3000
Routes 100
trails 100 plots with up to 10,000 points per trail
GPS alarms Anchor, Arriva
