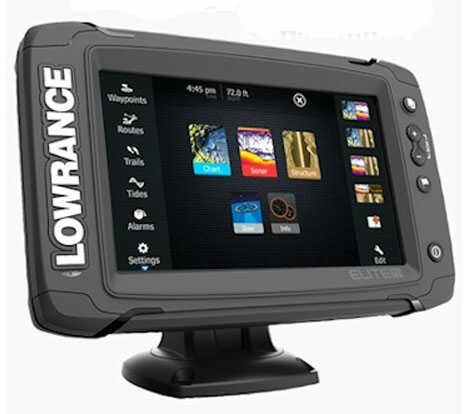

Lowrance Elite-7 Ti No XDCR Fishfinder/Chartplotter
The Lowrance® Elite-7Ti is a touchscreen fishfinder/chartplotter that matches high-end functions and features with powerful performance at an affordable price
Sporting a seven-inch, high-resolution touchscreen display, the Elite-7 Ti has your sonar needs covered with StructureScan® HD compatibility and support for Low/Mid/High CHIRP and 83/200 /455/800kHz frequencies
It has a built-in GPS antenna and reliable Lowrance navigation technology, allowing you to navigate with ease
The Elite-7 Ti also features integrated Bluetooth® and wireless connectivity that not only allows you to download software updates directly to the unit, but gives you the capability to download Insight Genesis custom maps to the unit, for immediate use , directly from the water.
High resolution display Lowrance-exclusive, high-resolution, 7-inch, LED-backlit color display
Easy-to-use touchscreen provides fast, fingertip access to all Elite-7 Ti features
CHIRP Sonar, StructureScan® and DownScan Imaging™
Top-of-the line sonar technologies provide the best possible view of the environment beneath your boat. StructureScan requires optional TotalScan transducer
TrackBack™
Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location with a waypoint
Internal GPS antenna
Highly accurate, built-in GPS antenna Optional chart upgrades (America)
Optional Americas chart upgrades include Lake and Nautic Insight PRO/HD from GoFree, C-MAP MAX-N/N+ from Jeppesen, HotMaps Premium/Platinum from Navionics, Fishing HotSpots and many others. Optional chart upgrades (Global) Optional Global chart upgrades include C-MAP MAX-N/N+ from Jeppesen, Navionics Gold, Platinum+ and Navionics+, Fugawi Aboard, NV Charts and many others
Built-in wireless connectivity provides access to the GoFree Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partners
Includes microSD card slot
Includes a Quick Release bracket
Specifications :
Display Widescreen, 16:9 ; WVGA color TFT LCD
Resolution 800 x 480
Power Output: RMS (PTP) Max 500W RMS
Operating Frequency (50/200 or 83/200 kHz) + 455/800 kHz
Media Port 1 microSD slot
Warranty One Year
Display Resolution 800W x 480H
Backlighting Type LED
GPS and Sonar Overlay Data Yes
Split Screen Presentation 4
Display Size 5"/ 12.7 cm (16:9)
Sonar Depth Alarm YES
Shallow Alarm Yes
Standard Fishfinding Features : COLORLINE™ or GRAYLINE®
Asp™
FishSymbol I.D.™
FishTrack™, and more
Temperature Readings Yes
Operating Temperature -15° C to + 55° C (+ 5° F to + 131° F)
Power Consumption 12 W (0.9 A @ 13 Volt DC)
Power Supply (Supply Voltage) 12 Volt DC (10-17 Volt DC min-max)
GPS Navigation: Routes 100
Navigation: Waypoint Storage 3000
GPS Antenna Type 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS
GPS Alarms Yes
Custom Mapping
Lake Insight™
Nautic Insight™ PRO and H
