Humminbird Piranhamax 4 DI Fish Finder Md: 410160-1
Humminbird

Humminbird Piranhamax 4 DI Fish Finder Md: 410160-1

Item #11158016 MPN 410160-1 UPC 082324048739
Humminbird Piranhamax 4 DI Fish Finder Md: 410160-1

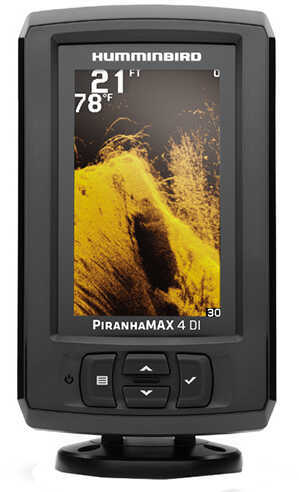

The PiranhaMAX 4 DI features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Down Imaging sonar.



Features:

- Down Imaging Sonar: Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves



Specifications:

- Display Size - Diagonal: 4.3"

- Display Pixel Matrix: 480H x 272V

- Display Type: Color TFT

- Display Colors Grayscale: 256 Colors

- Sonar Standard: Down Imaging/Dual Beam

- Standard Sonar Coverage: 28°, 16° & 75° @ -10db

- Standard Sonar Frequency: 200/455/455 kHz

- Target Separation: 2.5"

- Power Output RMS: 300 Watts

- Power Output Peak to Peak: 2400 Watts

- Depth Capability: 600'

- Temperature: Built-In Transducer

- Speed: Not Supported

- Backlight: Yes

- Unit Size - Gimbal Mount: 3.914" W x 7.335" H x 3.621" D

- Mount A Type: Gimbal Mount

- Unit Size - Indash Mount: In Dash

- Mount B Unit Size2: 3.914" W x 6.770" H x 2.600" D

- Mounting Options: Gimbal or Optional In-Dash

- Transducer Standard: XNT 9 DI T

- Transducer Mounting: Transom

- Power Input: 10.8-20 VDC

- Power Draw: 180mA
Humminbird Piranhamax 4 DI Fish Finder Md: 410160-1
