Humminbird Piranhamax 4 Md: 410150-1
Humminbird

Humminbird Piranhamax 4 Md: 410150-1

Item #11158120 MPN 410150-1 UPC 082324048708
Humminbird Piranhamax 4 Md: 410150-1

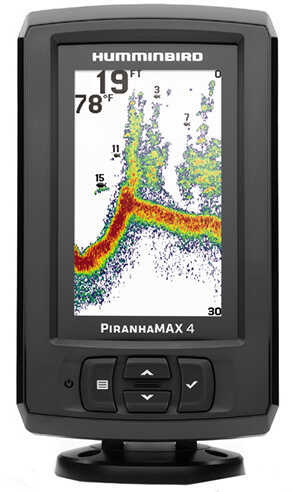

The PiranhaMAX 4 features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Dual Frequency sonar.



Features:

- Tilt and Swivel Mounts: Quickly adjust your viewing area angle.

- Dual Beam



Specifications:

- Display Size - Diagonal: 4.3"

- Display Pixel Matrix: 480H x 272V

- Display Type: Color TFT

- Display Colors Grayscale: 256 Colors

- Sonar Standard: DualBeam

- Standard Sonar Coverage: 28° & 16° @ -10db

- Standard Sonar Frequency: 200/455 kHz

- Target Separation: 2.5"

- Power Output RMS: 300 Watts

- Power Output Peak to Peak: 2400 Watts

- Depth Capability: 600 ft

- Temperature: Built-In Transducer

- Speed: Not Supported

- Backlight: Yes

- Unit Size - Gimbal Mount: 3.914" W x 7.335" H x 3.621" D

- Mount A Type: Gimbal Mount

- Unit Size - Indash Mount: In Dash

- Mount B Unit Size2: 3.914" W x 6.770" H x 2.600" D

- Mounting Options: Gimbal or Optional In-Dash

- Transducer Standard: XNT 9 28 T

- Transducer Mounting: Inside Hull or Transom

- Power Input: 10.8-20 VDC

- Power Draw: 180mA



Manufacturer: Humminbird

Model Number: 410150-1

Upc: 082324048708
