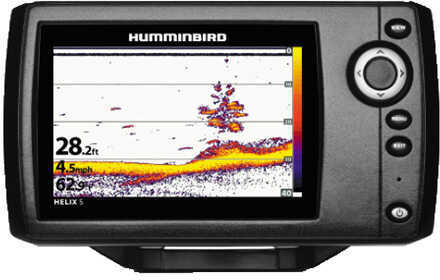

Humminbird Helix 5 Sonar G2 Md: 410190-1
Humminbird

Humminbird Helix 5 Sonar G2 Md: 410190-1

Item #11158383 MPN 410190-1 UPC 082324048999
Humminbird Helix 5 Sonar G2 Md: 410190-1

The HELIX 5 Sonar G2 with the user interface and operating system, features ?a brilliant 800H x 480V, 5" 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 fishfinder system.



Features:- SwitchFire Sonar -- Take command of how your sonar returns appear with Clear and Max Modes

- DualBeam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area

- Up-gradable Software: Access software updates to enhance the performance of your Humminbird unit through the My Humminbird section of the site



Specifications:

- Display Size - Diagonal:5"

- Display Pixel Matrix:800H X 480V

- Display Type:Color TFT

- Display Colors Grayscale:16-bit

- Sonar Standard:DualBeam PLUS

- Standard Sonar Coverage:20° & 60° @ -10db

- Standard Sonar Frequency:200/83 kHz

- Target Separation:2.5"

- Power Output RMS:500 Watts

- Power Output Peak to Peak:4000 Watts

- Depth Capability:1500'

- Temperature:Built-In Transducer

- Speed:Optional

- Backlight:LED

- Unit Size - Gimbal Mount:7.55"W x 4.64"H x 3.3"D

- Mount A Type:Gimbal Mount

- Unit Size - Indash Mount:7.55"W x 4.28"D x 1.13"D

- Mount B Unit Size2:Optional In-Dash

- Mounting Options:Gimbal Mount or Optional In-Dash

- Transducer Standard:XNT 9 20 T

- Transducer Mounting:Transom

- Power Input:10.8-20 VDC

- Power Draw:650 mA

- PC Connect:Optional

- SwitchFire Sonar:Included

- Humminbird PC:Optional

- Upgradable Internal Software:Optional

- Split Screen Zoom:Included

- Split Screen Bottom Lock:Included

- Large Digits View:Included

- Wide/Narrow Cone Split Screen:Included

- Custom View Selections:Included

- Custom Digital Readout:Included

- Temperature Alarm:Included

- Freeze Frame:Included

- Instant Image Update:Included

- Selective Fish ID+:Included

- Real Time Sonar:Included

- Triplog:Optional

- X-Press Menu System:Included

- Card Reader Available:No



Manufacturer: Humminbird

MFG Number: 410190-1

Upc: 082324048999
Humminbird Helix 5 Sonar G2 Md: 410190-1
Out of stock
$0.00
