Humminbird Piranhamax 4 PT Md: 410170-1
Humminbird

Humminbird Piranhamax 4 PT Md: 410170-1

Item #11175198 MPN 410170-1 UPC 082324048760
Humminbird Piranhamax 4 PT Md: 410170-1

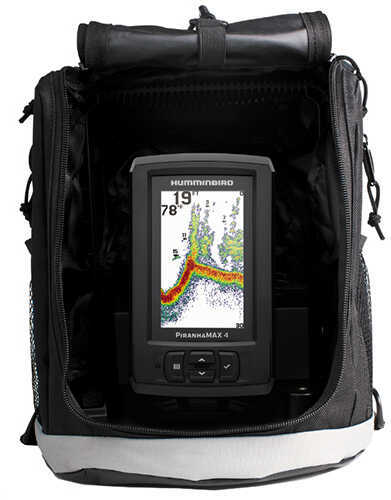

The PiranhaMAX 4 PT features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Dual Frequency sonar. It comes with a portable case, portable transducer, 7 Amp Hour battery and wall charger.



Features:

- Dual Beam

- Tilt and Swivel Mounts: Quickly adjust your viewing area angle



Specifications:

- Display Size - Diagonal: 4.3"

- Display Pixel Matrix: 480 H x 272 V

- Display Type: Color TFT

- Display Colors Grayscale: 256 Colors

- Sonar Standard: DualBeam

- Standard Sonar Coverage: 28° & 16° @ -10db

- Standard Sonar Frequency: 200/455 kHz

- Target Separation: 2.5"

- Power Output RMS: 300 Watts

- Power Output Peak to Peak: 2400 Watts

- Depth Capability: 600'

- Temperature: Built-In Transducer

- Speed: Not Supported

- Backlight: Yes

- Mount A Type: Portable Case

- Mounting Options: Portable

- Transducer Standard: XPT 9 28 T

- Transducer Mounting: Portable

- Power Input: 10.8-20 VDC

- Power Draw: 180mA



Manufacturer: Humminbird

Model Number: 410170-1

Upc: 082324048760
