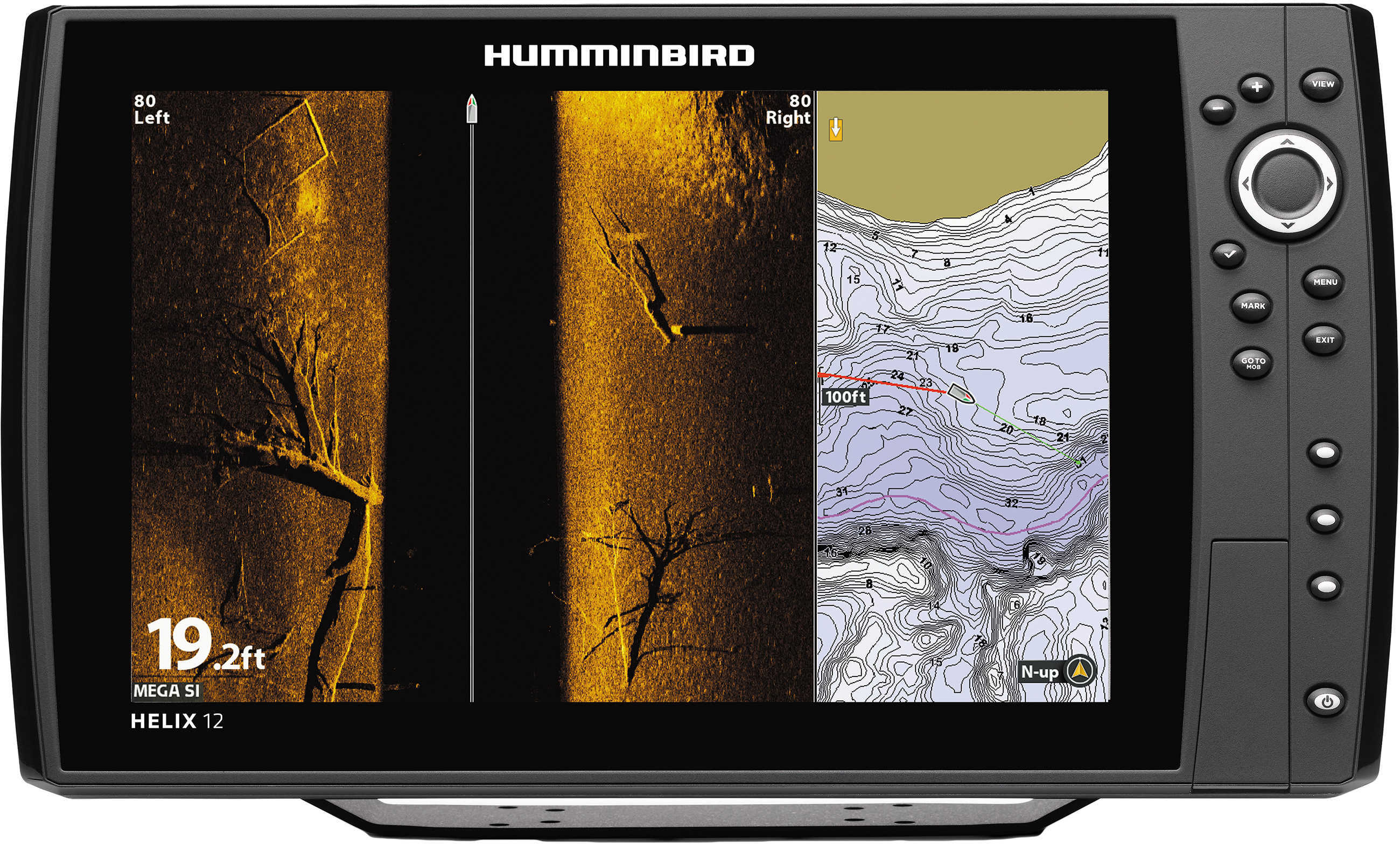

Humminbird HELIX 12 CHIRP SI GPS G2N Md: 410380-1
The HELIX 12 CHIRP MEGA SI GPS G2N features a large 12.1" display with LED backlight, CHIRP-ing MEGA Side Imaging, MEGA Down Imaging and 2D sonar. Includes GPS chartplotting, built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping, and unit cover.
Features:
- 455kHz Side Imaging provides 800' of side to side coverage.
- 455kHz Down Imaging works to a depth of 400'
- 1.2 MHz Side Imaging provides 250' of side to side coverage.
- 1.2 MHz Down Imaging works to a depth of 125'
- Broad Band Chrip: Exclusive Multi-Range Chirp -- View low, mid and high Chirp ranges, either individually or all at once
- 360 Imaging - Humminbird has you surrounded. 360 Imaging allows you to isolate your sweep, see 5 preset views or see all around you.
- Side Imaging Sonar -- Gain a 180° side to side perspective on the world below the surface.
- Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
- HD Radar: In darkness and fog, busy channels and treacherous weather, situational awareness is the name of the game.
- NMEA 2000: Get an at-a-glance view of fuel consumption, engine performance and other vessel data.
- Autochart Live: Make a map where there is no map. The patent pending AutoChart Live allows you to create digital, detailed maps live and on the water. You can also use it to enhance your existing charts.
- Wireless: Take wireless control of your Humminbird with the Bluetooth Remote and Dongle.
- i-Pilot Link is an integrated GPS Trolling System available on select Minn Kota Ulterra, Terrova and PowerDrive V2 motors which enable your motor and Humminbird to communicate.
- Dual SD Card Slots -- Use one slot for advanced cartography and the other to save screenshots, sonar recordings and waypoints.
- Ethernet: Rig up the ultimate fishing system. Use the 5-Port Ethernet switch to link together multiple Humminbird head units or share transducers.
Specifications:
- Cartography Type: Humminbird/Navionics Gold/Hotmaps
- Cartography Brand: Humminbird/Navionics
- Cartography - Preloaded: No
- Card Format: Micro SD
- Basemap: Yes
- Frequency: 83/200/455/800/1200
- Included Transducer: XM-14-20-MSI-T
- Internal/External Antenna: Internal
- Resolution (VxH): 1280 x 800
- Screen Size: 12.1'
- Screen Type: Color
- Speed/Temp: Both
- Touchscreen: No
- Transducer Type: Transom Mount
- Waterproof Rating: Waterproof
- Watts RMS - Max: 1000
- Waypoints/Routes: 2,500/47
- Weather Capable: No
Manufacturer: Humminbird
Model Number: 410380-1
UPC: 082324049712
