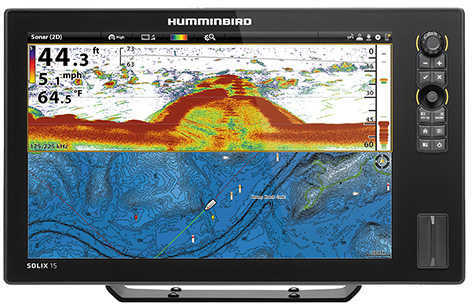

The SOLIX 15 features a large 15.4" display with LED backlight, CHIRP sonar with up to 8000 Watts PTP power output, GPS Chartplotting with built-in maps, and Ethernet networking capabilities. Includes unit cover and Cross Touch Interface
Features :
- Broadband CHIRP Sonar
- Xtreme Depth
- 360° Imaging
- Switchfire
- Dual Beam Plus Sonar
- Internal GPS
- Upgradeable Software
- Dual Card Slots
- High Definition Display
- Ethernet
- HD Radar
- Auis
- Auto Pilot
- i-Pilot Link
- Auto Chart Live
- Cross Touch
- Smart Strike
- Nmea 0183/2000
- Precision GPS
Specifications :
- Display Size (Diagonal): 15.4"
- Display Pixel Matrix: 1280 H x 800 V
- Display Type: Color TFT
- Display Colors Grayscale: 16 bit
- Sonar Standard: DualBeam PLUS
- Standard Sonar Coverage: 20° & 60° at 10db
- Standard Sonar Frequency: 83/200 kHz
- Sonar Optional: 50kHz, 50/Low Airmar CHIRP and SM3000
- Target Separation: 2.5"
- Power Output RMS: 1000 Watts*
- Power Output Peak to Peak: 8000 Watts*
- Depth Capability: 1500' and 3500'
- Temperature: Built-In Transducer
- Speed: GPS Speed Included
- Backlight: LED
- Unit Size (Gimbal Mount): 16.53" W x 10.46" H x 4.83" D

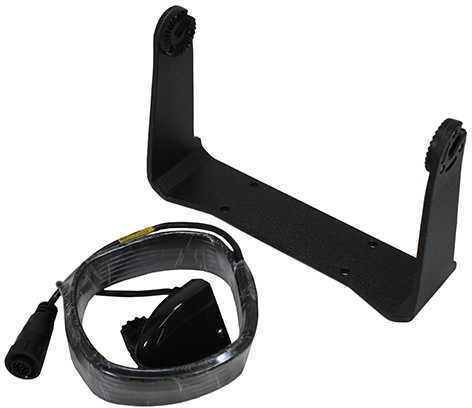

- Mount A Type :Gimbal Mount
- Unit Size (Indash Mount): 16.53"W x 10.05"H x 4.83"D
- Mount B Unit Size2: In-Dash
- Mounting Options: Gimbal or Optional In-Dash
- Transducer Standard: XNT 14 20 T
- Transducer Mounting: Transom
- Optional Sonar: 50kHz, 50/Low Airmar CHIRP and SM3000
- Power Input: 10.8-20 VDC
- Power Draw: 3.75 Amps Average Run Current/5.9 Peak Book Current/1.75 Amps Standby Mode
