Raymarine Marine Electronics / FLIR Ocean Scout TK Thermal Imager Md: 432-0012-22-00S
Raymarine Marine Electronics-FLIR

Raymarine Marine Electronics / FLIR Ocean Scout TK Thermal Imager Md: 432-0012-22-00S

Item #11198209 MPN 432-0012-22-00S UPC 723193813614
Raymarine Marine Electronics Ocean Scout TK Thermal Imager Md: 432-0012-22-00S

The FLIR Ocean Scout TK is a marine thermal camera that extends your vision on the water, day or night, for greater awareness and safety.



As a thermal imager, the Ocean Scout TK creates images based on heat, not visible light. Vessels, watercraft, buoys, and other obstacles give off heat and appear clearly in all lighting conditions - from pitch darkness to blinding sun glare.



Features:

- See obstacles and objects like boats, buoys, and channel markers up to 130 yards away, and steer clear of rocks and floating debris. Identify landmarks like docks, inlets, and jetties and locate people and pets overboard

- Ocean Scout TK starts up in seconds, and with easy-to-use buttons no training is required. Submersible (IP67) and built to withstand harsh marine environments

- See marine mammals, or discover wildlife back on shore

- Store up to 1000 thermal snapshots. Record thermal video

- Choose from multiple color palettes

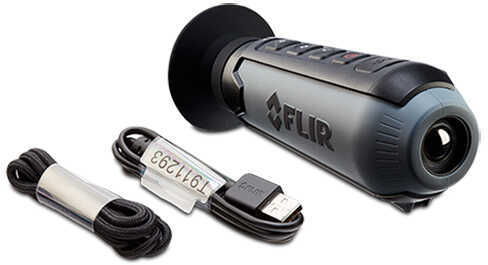

Includes:

- Thermal Camera

- USB Cable

- Wrist Strap

- Quick Start Guide



Specifications:

- Detector Type: 160 × 120 VOx Microbolometer

- Video Refresh Rate: < 9Hz

- Field of View: 20° H x 16° V

- Shutter: Yes

- Start Up: < 5 Seconds

- Image Processing: FLIR Proprietary Digital Detail Enhancement



User Interface:

- Power Button: On/Off

- Video Detection: Palettes Short Press to Toggle thru LUT’s

- Brightness: Brightness (Toggle up<>down)

- Image Capture: Short press for Image capture, long press for Video capture

- Image Download: USB Cable



System:

- Built-In Display: 640 X 480 LCD Display

- Color Palettes: Selectable: Black Hot, White Hot, InstAlert Rainbow, Iron, Lava, Arctic & Graded Fire



Power:

- Battery Type: Internal Li-Ion Cell

- Battery Life (Operating): > 5 Hours



Environmental:

- Operating Temperature: -4° F to 104° F

- Storage Temperature: -40° F to 140° F



Physical:

- Dimensions: 4” L x 1 1/2” W x 1 1/2" H

- Weight: 6 oz (Including Lens)
