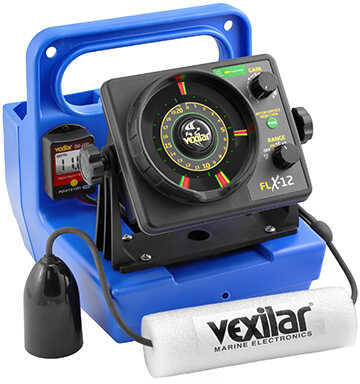

Vexilar FLX-12 Genz Pack with 12° Ice-Ducer and DD-100 Md: GPX1212D

Vexilar Inc. FLX-12 Genz Pack with 12° Ice-Ducer and DD-100 Md: GPX1212D

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.

Setting the standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Features:

- Superior Radar Imaging: FLIR’s exclusive ATX advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality
Quantum Radar
Ordinary magnetron radar

- CHIRP Pulse Compression:
Excellent short-range detection and enhanced target detail with 18' minimum range
CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges
Day marker target at close range

- Small Target Detection:
Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

- Immediate Awareness: Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

- Simplified Installation:
Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD
Quantum’s small diameter power cable is easy to route through tight spaces
Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run radar cables

- Energy Efficient and Lightweight Design:
Weighs 50% less than traditional magnetron radars
Safe Emissions thanks to Quantum’s low power solid state radar transmitter
Very low power consumption (17 Watts transmit and 7 watts standby)
Extended vessel battery life when under sail

Includes:

- 1 Quantum Radome
- 1 32.8' Power Cable
- 4 M8 Mounting bolts with spring washers and flat washers
- 1 Documentation paxk (including mounting template)

Specifications:

- Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
- Networking: Wi-Fi or wired Ethernet (RayNet)
- Antenna Type: Patch Array
- Power Consumption: Transmit mode 17W; standby mode 7W; sleep mode 2W
- Range: Scales From 1/16 to 24 nautical miles
- Transmit Frequency: 9354 to 9446 MHz
- Peak Power Output: 20W
- Duplexer: Circulator
- Pulse Widths (3 dB): 40 ns to 14.7 µs
- CHIRP Lengths: 400 ns to 20 µs
- CHIRP Bandwidth: Up to 32 MHz
- IF Bandwidth: 26 MHz
- Noise: Less than 4 dB
- Max. Range Scale: from 1/16 to 24 nautical miles
- Beamwidth (nominal): 4.9º horizontal and 20º vertical
- Polarisation: Horizontal
- Waterproofing: IPX6
- Weight: 12.3 lbs.
