The ICE HELIX 5 CHIRP GPS G2 features a brilliant 800H x 480V, 5" 16 BIT color display with backlight. CHIRP SONAR with 4000 watts PTP power output, GPS Chartplotting with Humminbird's new built-in Basemap and UniMap cartography with a micro SD card slot for optional maps or saving waypoints.
Features :
- SwitchFire Sonar - Take command of how your sonar returns appear with the Clear and Max Modes
- DualBeam PLUS Sonar - Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area
- Internal GPS - GPS antenna built into the head unit
- Upgradeable Software - Access software updates to enhance the performance of your Humminbird unit through Humminbird's website
- UniMap Cartography - The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes and rivers at 30 meters per pixel resolution
- MicroSD Card Reader - Use for advanced cartography or to save screenshots, sonar recordings and waypoints or to update your units software
- Precision GPS

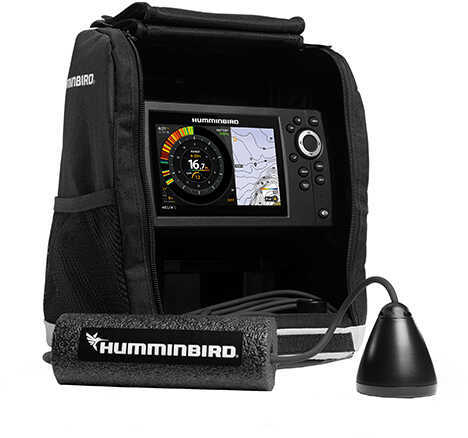

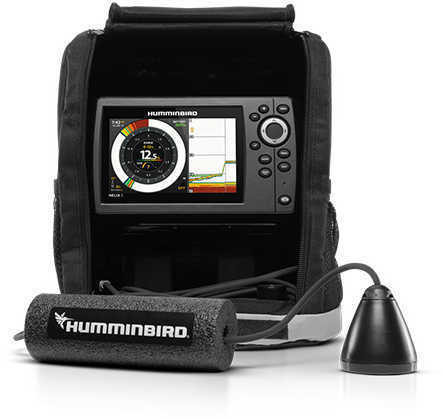

Includes :
- Helix 5 CHIRP Sonar GPS G2 Display
- Portable Carry Case
- XI 9 1521 Ice Transducer
Specifications :
- Display Size - Diagonal: 5"
- Display Pixel Matrix: 800H X 480V
- Display Type: Color TFT
- Display Colors Grayscale: 16-Bit
- Sonar Standard: CHIRP
- Standard Sonar Coverage: 15 - 21°
- Standard Sonar Frequency: 130-250 kHz
- Sonar Optional: 50/200 Deepwater 200/83
- Target Separation: 1.5"
- Power Output RMS: 500 Watts
- Power Output Peak to Peak: 4000 Watts
- Depth Capability: 400'
- Temperature: Optional
- Speed: GPS Speed Included
- Backlight: LED
- Unit Size - Gimbal Mount: 7.55"W x 4.64"H x 3.3"D
