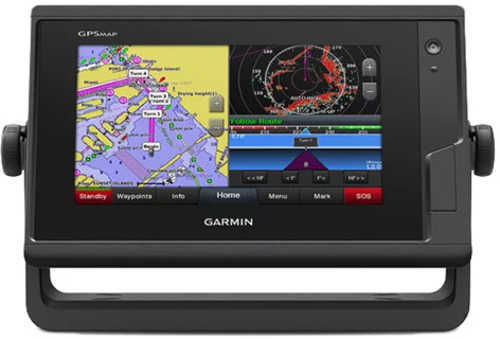

Garmin International Fish Finder GPSMAP 742 Non-Sonar with Mapping

Garmin International Fish Finder GPSMAP 742 Non-Sonar with Mapping

Experience an advanced navigation solution with this compact 7-inch GPSMAP 742 touchscreen combo. Includes wireless connectivity features for Garmin mobile apps, NMEA 2000 support and Garmin Marine Network capabilities for radar and Panoptix FrontVü collision avoidance sonar.



Features :

- 7" high-resolution intuitive touchscreen controls

- NMEA 2000® and NMEA 0183 support for network connectivity, including autopilots, digital switching, weather, FUSION-Link, VHF, AIS and more

- Garmin Marine Network support for sharing sonar, including Panoptix™ sonar, maps, user data, radar and IP cameras among multiple units

- Preloaded U.S. LakeVü HD maps and BlueChart® g2 charts

- Garmin Marine Network and NMEA 2000 Support

- Built-in ANT® Connectivity

- The Ultimate Connected Boating App

- Heading and Position Refreshed 10 Times per Second

- Preloaded with Exceptional Garmin Cartography

- Upgrade to Our Best Maps on the Water

- Quickdraw Contours to Create Your Own HD Maps

- Built-in SailAssist Features

- GPX Waypoints Transfer



Package Includes :

- GPSMAP 742 Chartplotter

- Power Cable

- Bail Mount Kit with Knobs

- Flush Mount Kit with Gasket

- Protective Cover

- Trim Piece Snap Covers

- Documentation



Specifications :

General :

- Dimensions: 8.80" x 5.60" x 2.10"

- Display Size: 6.10" x 3.40"

- Display Resolution: 800 x 480 Pixels

- Display Type: Multi-Touch Touch-Screen WVGA

- Weight: 1.90 lbs

- Water Rating: IPX7

- Antenna: Internal or External Over NMEA 2000

- Mounting Options: Bail or Flush

- Receiver: 10 Hz High-Snsitivity

- Garmin Marine Network: 1



Maps and Memory :

- Preloaded Maps: BlueChart g2 (US and Western Canada Coastal Maps) and LakeVü HD (Inland Mmaps)

- Accepts Data Cards: 2 microSD

- Waypoints: 5,000

- Routes: 100

- Track Log: 50,000 Points and 50 Saved Tracks



Outdoor Recreation Features :

- Tide Tables



Chartplotter Features :

- Garmin Radar Compatible

- Garmin Sonar Compatible: Yes (with External Black Box Sold Separately)

- Garmin SmartMode Compatible (Customizable Monitor Pre-Sets)

- Supports AIS (Tracks Target Ships pPsition)

- Supports DSC (Displays Position Data From DSC-Capable VHF Radio)

- Garmin Meteor Audio System Compatible

- Supports FUSION-Link Compatible Radios

- GSD Black Box Sonar Support

- GCV Black Box Sonar Support

- ActiveCaptain Compatible

- Garmin Helm Compatible

- GRID™ (Garmin Remote Input Device) Compatible

- Wireless remote Compatible



Sonar Features & Specifications :

- CHIRP Sonar Technology: Yes (with External Black Box, Sold Separately)

- ClearVü: Yes (with External Black Box, Sold Separately)

- SideVü: Yes (with External Black Box, Sold Separately)



Connections :

- NMEA 2000 Compatible

- NMEA 0183 Input Ports: 1 (Differential)

- NMEA 0183 Output Ports: 1 (Differential)

- Video Input Ports : BNC

- Video Output Ports: None

- Wi
