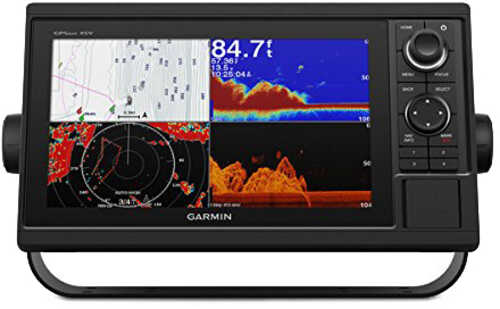

Garmin International GPSMAP 1042xsv Without Transducer
Item #11397013MPN 010-01740-03UPC NOUPC520768
Garmin International GPSMAP 1042xsv Without Transducer
Experience an advanced all-in-one solution with our 10” GPSMAP 1042xsv keyed combo. It has built-in support for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü sonars. There’s also built-in support for Panoptix all-seeing sonar, including Panoptix LiveScope and a wide range of other transducers (sold separately). Features include a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Features :
- 10" color display with keypad interface and multifunction control knob
- Built-in support for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars (transducers sold separately)
- Preloaded U.S. LakeVü g3 maps and BlueChart g3 charts feature Navionics data and Auto Guidance¹ technology
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000 connectivity plus NMEA 0183 support
- Complete Network Sharing
- Built-in Sonar Capabilities
- Preloaded with Exceptional Garmin Cartography
- Upgrade to Garmin's Best Maps on the Water
- Built-in ANT Connectivity
- The Ultimate Connected Boating App
- Heading, Position Refreshed 10 Times per Second
- Quickdraw Contours to Create Your Own HD Maps
- Built-in SailAssist Features
- GPX Waypoints Transfer
Package Includes :
- GPSMAP 1042xsv Chartplotter
- Power/Data Cable
- NMEA 2000 T-Connector
- NMEA 2000 Drop Cable (2 m)
- 8-Pin Transducer to 12-Pin Sounder Adapter Cable
- Bail Mount Kit with Knobs
- Flush Mount Kit with Gasket
- Protective Cover
- Trim Piece Snap Covers
- Documentation
Specifications :
General :
- Dimensions: 12 1/2" x 7.30" x 2.70"
- Display Size: 8.80" x 4.90"
- Display Resolution: 1024 x 600 Pixels
- Display Type: WSVGA
- Weight: 4.10 lbs
- Water rating: IPX7
- Antenna: Internal or External Over NMEA 2000
- Mounting Options: Bail or Flush
- Receiver: 10 Hz High-Sensitivity
- Garmin Marine Network Ports: 2
Power Consumption :
- Maximum Power Usage at 10 Vdc: 32.4 W
- Typical Current Draw at 12 Vdc: 1.9 A
- Maximum Current Draw at 12 Vdc: 2.7 A
Maps and Memory :
- Preloaded Maps: BlueChart g2 (US and Western Canada Coastal Maps) and LakeVü HD (Inland Maps)
