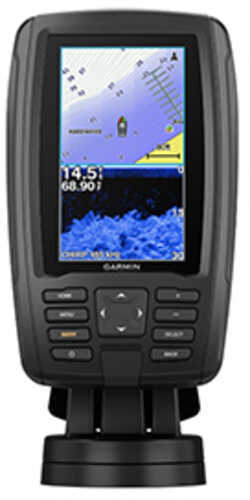

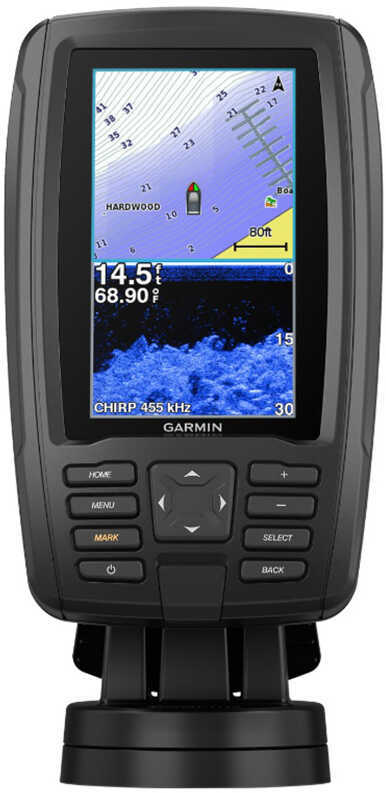

Garmin International ECHOMAP Plus 43cv with GT20 Transducer
Garmin

Garmin International ECHOMAP Plus 43cv with GT20 Transducer

Item #11397098 MPN 010-01885-05 UPC NOUPC520760
Garmin International ECHOMAP Plus 43cv with GT20 Transducer

The Garmin® ECHOMAP™ Plus 43cv with GT20 Transducer Fish Finder/Chartplotter Combo makes a great addition to any fishing or boating trip and has lots of built-benefits. This Garmin fish finder sports a vivid, 4.3" display with support for crisp, clear Garmin CHIRP traditional sonar and CHIRP ClearVü™ scanning sonar. It comes preloaded with LakeVü HD maps that cover 17,000 total lakes, including 13,000 with 1' contours. Unlike ordinary fish finders and chart plotters this ECHOMAP fish finder has Quickdraw Contours mapping software that instantly creates personalized fishing maps on-screen with 1' contours, in real time, as you fish. You own these maps; they're yours to keep private or share with the Garmin Quickdraw™ Community on Garmin Connect™. Plus, with the Garmin ECHOMAP Plus 43cv with GT20 Transducer Fish Finder/Chartplotter Combo, you can share waypoints and routes with other ECHOMAP or STRIKER™ devices. The quick-release mount makes the combo easy to remove and take with you.



Features :

- Vivid, 4.3" display

- Support for crisp, clear Garmin CHIRP traditional sonar and CHIRP ClearVu™ scanning sonar

- Preloaded LakeVü HD maps: 17,000 total lakes, including 13,000 with 1' contours

- Quickdraw Contours real-time mapping software

- Share waypoints and routes with other ECHOMAP or STRIKER units



Package Includes :

- ECHOMAP Plus 43cv with LakeVü g3 for U.S.

- GT20-TM Transducer

- Power/Data Cable

- Tilt/Swivel Mount with Quick Release Cradle

- Flush Mount

- Protective Cover

- Hardware

- Documentation



Specifications :

General :

- Dimensions: 6 1/2" x 4" x 3.10"

- Display Size: 2.10" x 3.70" and 4.30" Diagonal

- Display Resolution: 480 x 272 Pixels

- Display Type: WQVGA Display

- Weight: 1.60 lbs

- Water Rating: IPX7

- Power Consumption: 5W

- Antenna: Internal or External Over NMEA 0183

- Mounting Options: Bail or Flush

- Receiver: 5 Hz

- Garmin Marine Network Ports: None



Maps and Memory :

- Preloaded Maps: LakeVü g3 (Inland Maps)

- Accepts Data Cards: 1 microSD Card (32GB Maximum)

- Waypoints: 5,000

- Routes : 100

- Track Log: 50,000 Points and 50 Saved Tracks



Outdoor Recreation Features :

- Tide Tables



Chartplotter Features :

- Garmin Sonar Compatible

- Supports AIS (Tracks Target Ships Position)

- Supports DSC (Displays Position Data From DSC-Capable VHF Radio)



Sonar Features & Specifications :

- Dual Frequency (50/200 kHz) Sonar Capable

- Dual Beam (77/200 kHz) Sonar Capable

- Transmit Power: 500 W (RMS) / 4,000 W (Peak to Peak)

- CHIRP Sonar Technology: Yes (Built-In)

- ClearVü: Yes with CHIRP (Built-In)

- SideVü: No

- Maximum Depth: Freshwater: 2300'and Saltwater: 1100'

- Bottom Lock (Shows Return From the Bottom Up)

- Water Temperature Log andGraph

- Sonar Recording and History Rewind



Connections :

- Transducer Pin Numbers: 4

- NMEA 0183 Input Ports: 1

- NMEA 0183 Output Ports: 1
