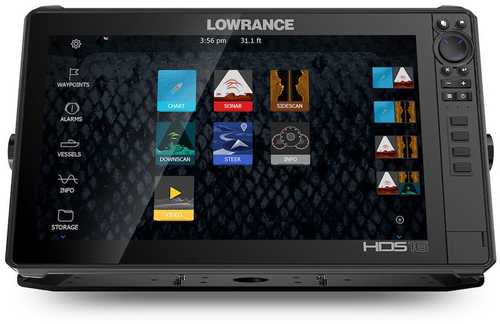

Lowrance HDS-16 Live C-MAP Insight without Transducer

Lowrance HDS-16" LIVE with No Transducer



HDS LIVE 16 delivers the best views with a full high-definition touchscreen and offers access to the best fishfinding technology with support for Active Imaging™, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging and new, Genesis Live onscreen mapping.



- 16-inch models

- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*

- Active Imaging™ 2-in-1 (Side/Down) sonar ready*

- StructureScan® 3D compatible*

- LiveSight real-time sonar compatible*

- Smartphone notifications

- Powerful quad-core processor**

- High-performance dual-core processor

- Programmable keys**

- C-MAP Genesis Live onscreen mapping

- FishReveal™ Smart Target View

- Six-panel, splitscreen capability**

- Full high-definition SolarMAX HD screen (HDS LIVE 16 only)

- High-resolution SolarMAX™ HD multi-touch screen

- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes

- C-MAP Easy Routing, Navionics Autorouting capability

- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer

- Live Network Sonar

- SiriusXM® Marine Weather and Audio compatible

- Wireless and Bluetooth® connectivity

- Heat Map Chart Overlay

- Enhanced Surface Clarity

- Quick Access Control Bar

- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors

- Radar and SonicHub®2 audio server connectivity

- NMEA 2000® engine support

- Optional mapping upgrades include C-MAP, Navionics® and more



Specificaitons:

- Screen Brightness: >1200 Nits

- Update rate: 10 Hz

- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS

- Shock Vibration: 100,000 cycles of 20 G

- Supply Voltage: 12 v DC (10.8-17VDC)

- Compass Safe: 12" (300mm)

- GPS Receiver Channels: 16

- Dimensions W x H x D: 16.95in (430.5mm) x 10.20in (259.2mm) x 3.46in (87.8mm)

- Display Resolution: 1920 x 1080 Full HD

- NMEA 2000 Connectivity: 1x Micro-C

- SD Card Storage: 2 micro SD cards up to 32GB

- Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network

- Warranty Period: 2 Year + 3 additional years of upgrade options totaling 5 years (through manufacturer)

- Position Accuracy: 20m RMS

- Power Consumption typical: 3.00 @ 13VDC with Full Backlight, Sonar on

- Power Consumption min: 3.00 @ 13VDC with Full Backlight, Sonar on

- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail

- Time to First Fix: 30s

- Power Consumption max: 4.9A @ 13VDC with Full Backlight,

Sonar on

- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )

- Radar compatibility: 4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3'/4'/6' (Open Array Pulse Compression Radar)

- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )

- Recommended Fuse Rating: 6.5A

- Humidity: 60°C, 95% relative humidity (RH) for 18 hours

- Weight: 7.94lb (3.60kg)

- Internal Storage: 8.0 GB Internal

- Viewing Angles: 80° top/bottom, 80° left/ri
