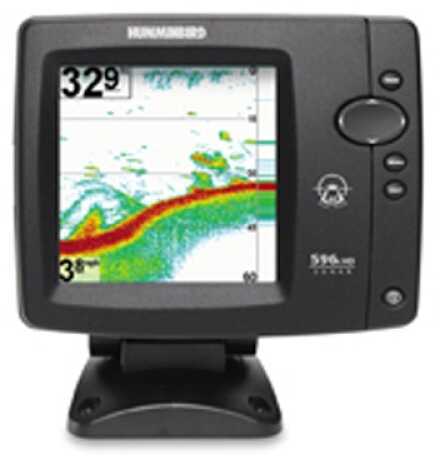

Humminbird Fishfinder 596C HD 407910-1

Fishfinder 596C Hd #407910-1 Sonar Only. The 596c HD features an industry best, brilliant, color 640V x 640H 5" display with LED backlight. Dual Beam PLUS Sonar with 4000 Watts PtP power output, and a Tilt & Swivel Quick Disconnect Mounting System. The design allows drop-in replacement capability for competitive in-dash models. Maximize your angling experience with the Humminbird 596c HD fishfinder.



Features :

- Switchfire Sonar

- Split Screen Zoom

- Wide Narrow Cone Split Screen

- Selective Fish ID+

- Real Time Sonar RTS Window

- Sonar Echo Enhancement

- TrueArch Technology

- Custom View Selections

- Custom Digital Readout Selection

- Selectable Display Colors

- Selectable Background Colors

- Triplog - Optional

- X-Press™ Menu System



Specifications :

- Display Size: 5” diagonal

- Display Pixel Matrix: 640Vx640H

- Display Type: 256 Color TFT

- Display Colors/Grayscale: 256 Colors

- Dual Beam Plus Sonar Coverage: 200 kHz 20 degree/83 kHz 60 degree



Specifications :

- Display Size: 5” Diagonal

- Display Pixel Matrix: 640Vx640H

- Display Type: 256 Color TFT

- Display Colors/Grayscale: 256 Colors

- Dual Beam Plus Sonar Coverage: 200 kHz 20 degree/83 kHz 60 degree

- Target Separation: 2.5”

- Power Output (RMS): 500 Watts

- Power Output (Peak to Peak): 4000 Watts

- Temperature: Included

- Speed: Capable

- Backlight: Yes

- Waterproof: Yes

- Mount: Quick Disconnect

- Unit Size: 6.9”Wx7.5”Hx4.5”D

- Transducer Standard XNT-9-20-T

- Transducer Mounting: Transom

- Power Input: 10-20 VDC

- Power Draw: 615 mA

596C Hd
