Humminbird Fishfinder 596C HD Di 408110-1
Humminbird

Humminbird Fishfinder 596C HD Di 408110-1

Item #83793 MPN 408110-1 UPC 082324035173

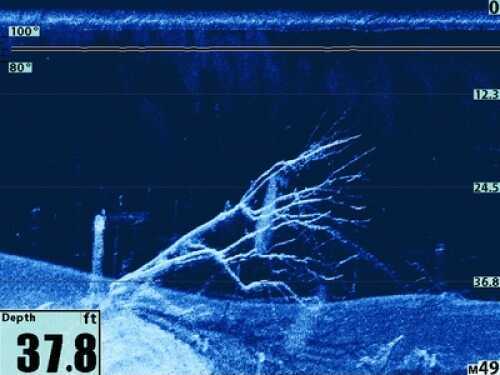

Fishfinder 596C Hd Down Imaging #408110-1. Timber, rocks, or even fish--watch it all take shape on crystal-clear, full-color 5 inch displays. With screens that size, it's easy to take advantage of versatile Down Imaging Sonar and exclusive Humminbird SwitchFire technology. We're talking a beam sensitive enough to track a jig down to 70 feet and seperate fish as close as 2.5 inches apart. Get all this technology in a convenient in-dash mount, or use our Tilt & Swivel Quick Disconnect Mounting System.





Features :

- Switchfire Sonar

- Split Screen Zoom

- Wide Narrow Cone Split Screen

- Selective Fish ID+

- Real Time Sonar RTS Window

- Sonar Echo Enhancement

- TrueArch Technology

- Custom View Selections

- Custom Digital Readout Selection

- Selectable Display Colors

- Selectable Background Colors

- Triplog - Optional

- X-Press™ Menu System



Specifications :

- Display Size: 5in Diagonal

- Display Pixel Matrix: 640Vx640H

- Display Type: 256 Color TFT

- Down Imaging Sonar Coverage: 455kHz 75 degress @10db/800kHz 45 degrees@10db

- Dual Beam Plus Sonar Coverage:20 kHz 25 degrees@10db/455 kHz 16 degrees@10db - Target Separation: 2.5in

- Power Output (RMS):

- Power Output (Peak to Peak): 4000 Watts

- Temperature: Included

- Speed: Capable

- Backlight: Yes

- Waterproof: Yes

- Mount: Optional In Dash

- Unit Size: 6.9”Wx5.4”Hx1.25’D

- Transducer Standard: XNT-9-DI-T

- Transducer Mounting: Transom

- Power Input: 10-20 VDC

- Power Draw: 615 mA

596C HD Di
Humminbird Fishfinder 596C HD Di 408110-1
